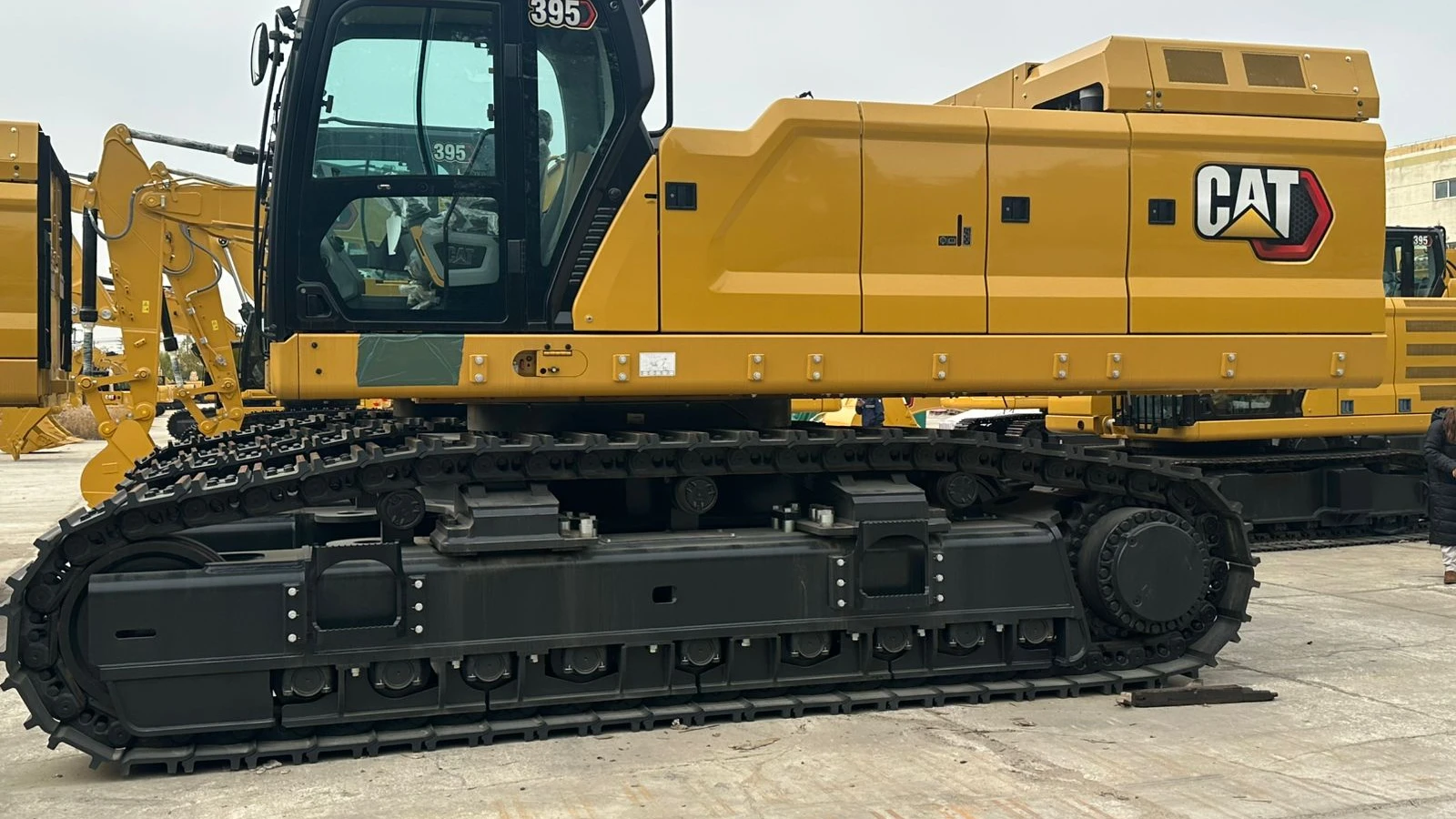

CAT 395
Engine
| Net Power - ISO 9249 | 542 hp |
| Net Power - ISO 9249 (DIN) | 550 hp (metric) |
| Engine Model | Cat C18 |
| Engine Power - ISO 14396 | 543 hp |
| Engine Power - ISO 14396 (DIN) | 551 hp (metric) |
| Bore | 6 in |
| Stroke | 7 in |
| Displacement | 1105 in³ |
| Biodiesel Capability | B20¹ |
| Emissions | Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards. |

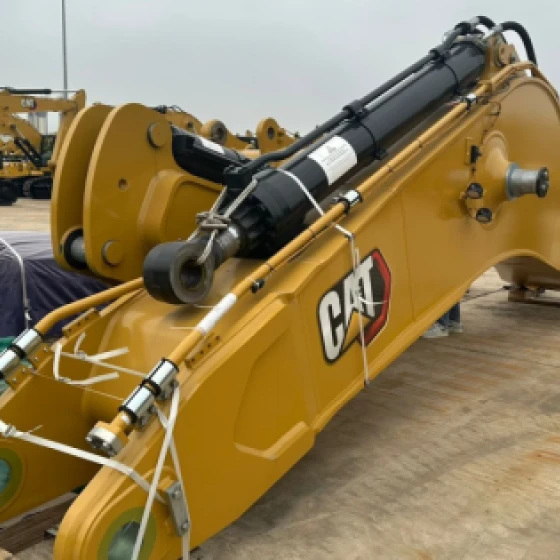

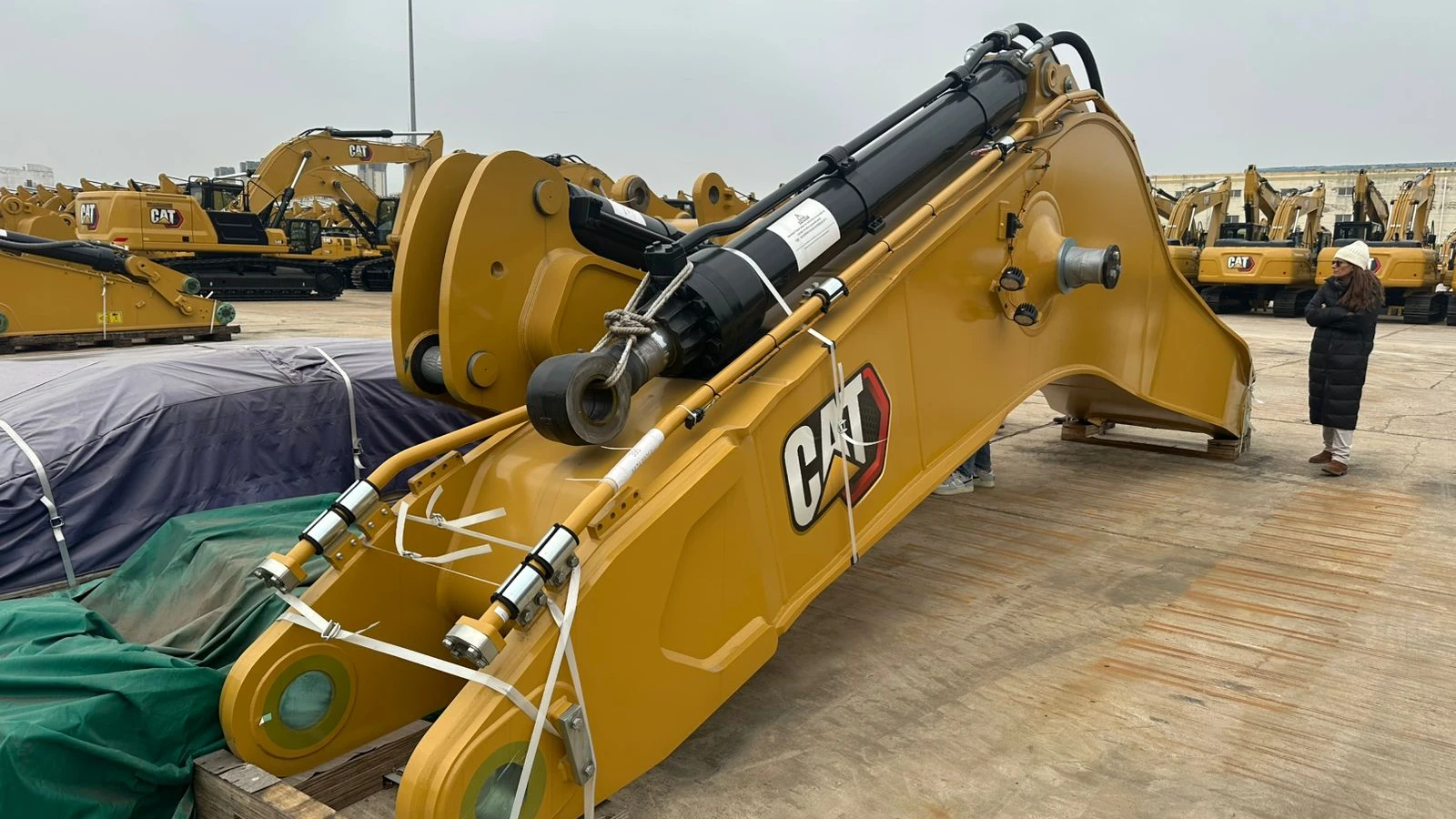

| Boom | GP 8.4m (25'7") |
| Stick | R4.4m (14'5") |

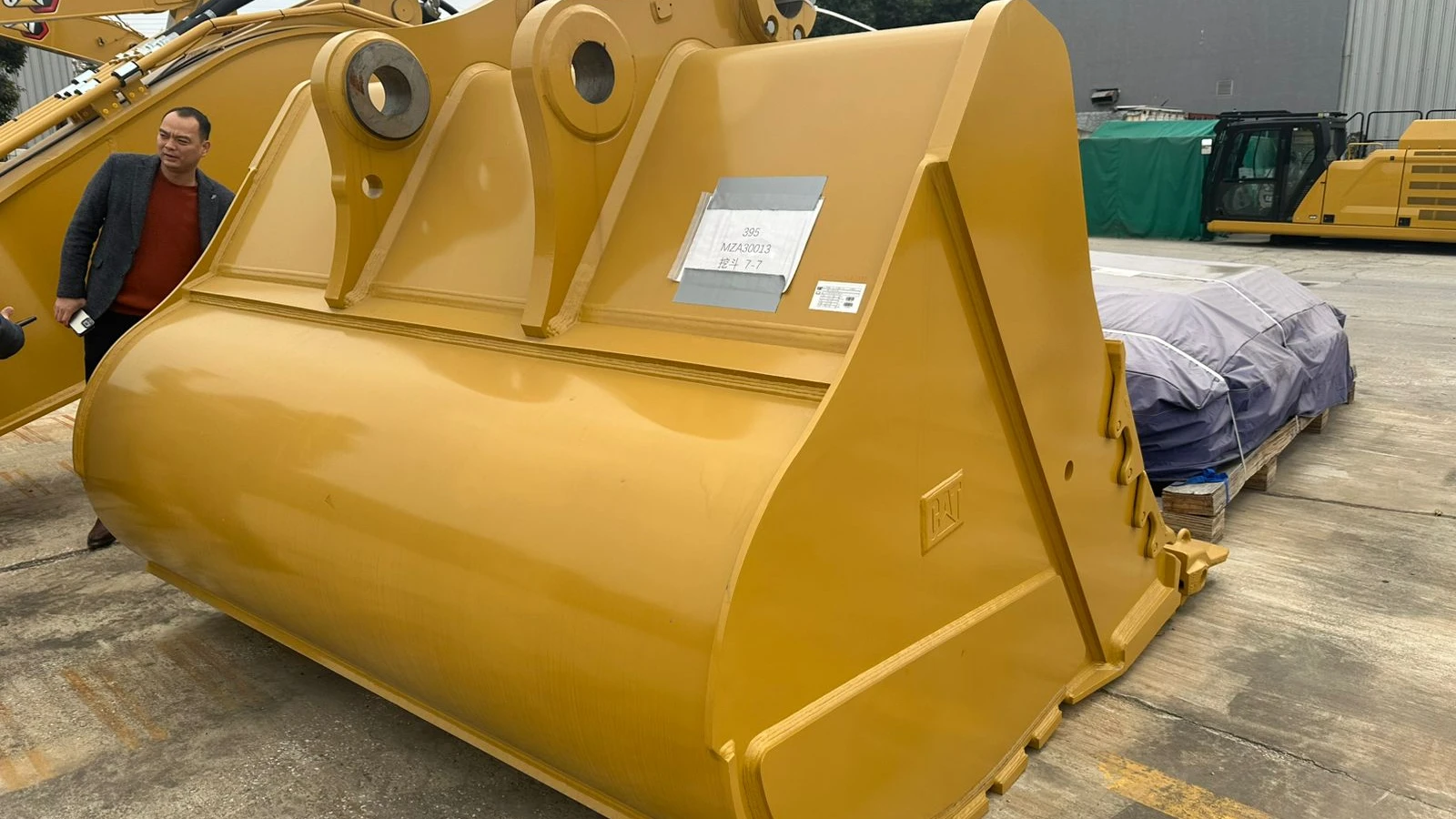

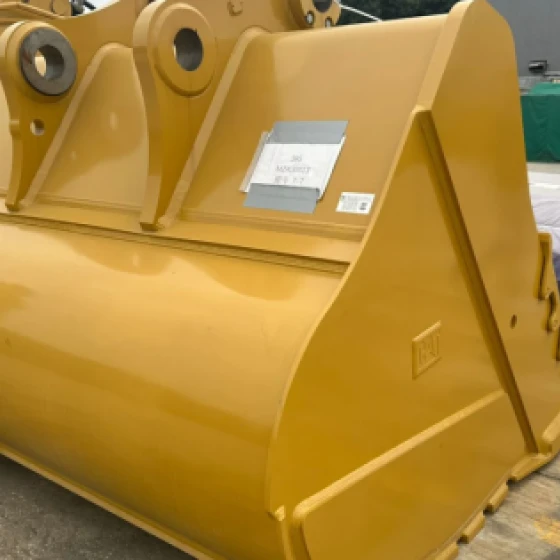

| Bucket | SD 5.2m³ (6.8 yd³) |
| Shipping Height - Top of Cab | 12 ft |
| Handrail Height | 12.4 ft |
| Shipping Length | 49.6 ft |
| Tail Swing Radius | 15.11 ft |
| Counterweight Clearance | 5.5 ft |
| Ground Clearance | 2.9 ft |
| Track Length | 20.1 ft |
| Track Length to Center of Rollers | 16.1 ft |
| Track Gauge | 11.6 ft |
| Transport Width | 12.9 ft |
Stock: 1
